BIOBASE BK-D560 Double Beam UV VIS Spectrophotometer - LabMed Nepal

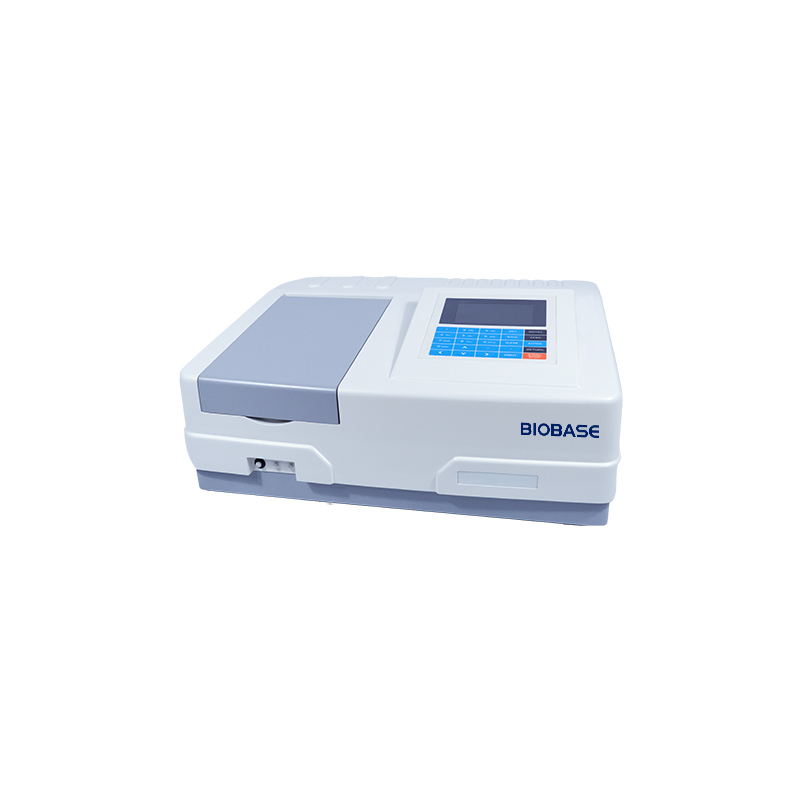

BIOBASE BK-D560 Double Beam Scanning UV/Vis Spectrophotometer

BIOBASE BK-D560 double-beam scanning UV/Vis spectrophotometer covering 190–1100 nm for quantitative, wavelength-scanning and laboratory analytical workflows. B2B quotation and technical consultation from LabMed Nepal.

Key specificationsAt a glance
Model / SKUBK-D560
BrandBIOBASE
ModelBK-D560
Product TypeDouble Beam Scanning UV/Vis Spectrophotometer
Spectral Bandwidth1.8 nm
Wavelength Accuracy±0.3 nm
B2B procurement Need an official quotation?

Send this model for price, lead time, warranty and delivery confirmation.

Request quotation → SKU / Model: BK-D560
Product resources Details, brochures & technical documents

Review technical information for procurement, model comparison and approval.

01 / DetailsProduct DetailsOverview, application and product information ↓ 02 / SpecificationsTechnical SpecificationsView complete specification table ↓ 03 / PDFDownload BrochureOfficial brochure or catalogue ↗ 04 / ManualUser ManualOpen product manual ↗ 05 / VideoRequest Product VideoAsk for demo or product media → 06 / SourceManufacturer PageVerified product source ↗
SKU: BK-D560 Categories: , , , ,
Share this product
◆ Get Quote

Description

BIOBASE BK-D560 Double Beam Scanning UV/Vis Spectrophotometer

The BK-D560 is a verified BIOBASE double-beam UV/Vis spectrophotometer for analytical, quality-control and research laboratories.

Verified technical highlights

  • Model: BK-D560
  • Brand: BIOBASE
  • Optical system: double beam, 1200 lines/mm grating
  • Wavelength range: 190–1100 nm
  • Spectral bandwidth: 1.8 nm
  • Wavelength accuracy: ±0.3 nm
  • Photometric modes: T, A, C and E
  • Detector: silicon photodiode
  • Light source: deuterium and tungsten lamps
  • Display: 5.1-inch TFT LCD
  • USB connectivity for print/data output and PC connection

Technical resources

Official BIOBASE BK-D560/BK-D580/BK-D590 manufacturer page and brochure/download resource

B2B quotation & laboratory supply

Contact LabMed Nepal for current quotation, accessory configuration, lead time and project supply. Final configuration and specifications should be confirmed against current manufacturer documentation before procurement.

Additional information

Brand

BIOBASE
Model

BK-D560
Product Type

Double Beam Scanning UV/Vis Spectrophotometer
Spectral Bandwidth

1.8 nm
Wavelength Accuracy

±0.3 nm
Wavelength Repeatability

≤0.2 nm
Photometric Accuracy

±0.002 A (0–0.5 Abs); ±0.004 A (0.5–1.0 Abs); ±0.3%T
Photometric Repeatability

0.001 Abs (0–0.5 Abs); 0.002 Abs (0.5–1.0 Abs); ≤0.1%T
Stray Light

≤0.03%T @ 360 nm / 220 nm
Stability

±0.0003 A/h @ 500 nm
Baseline Flatness

±0.0005 A
Noise

±0.0002 Abs
Display

5.1-inch TFT LCD, 480×800
Photometric Mode

T, A, C, E
Photometric Range

0–200%T; -0.301–3.0 A
Detector

Silicon photodiode
Light Source

Deuterium lamp + tungsten lamp
Output

USB-A ×2; USB-B to PC
Power Supply

AC85–265 V, 50/60 Hz
Package Size (W×D×H)

740 × 570 × 440 mm
Gross Weight

25 kg
