Description

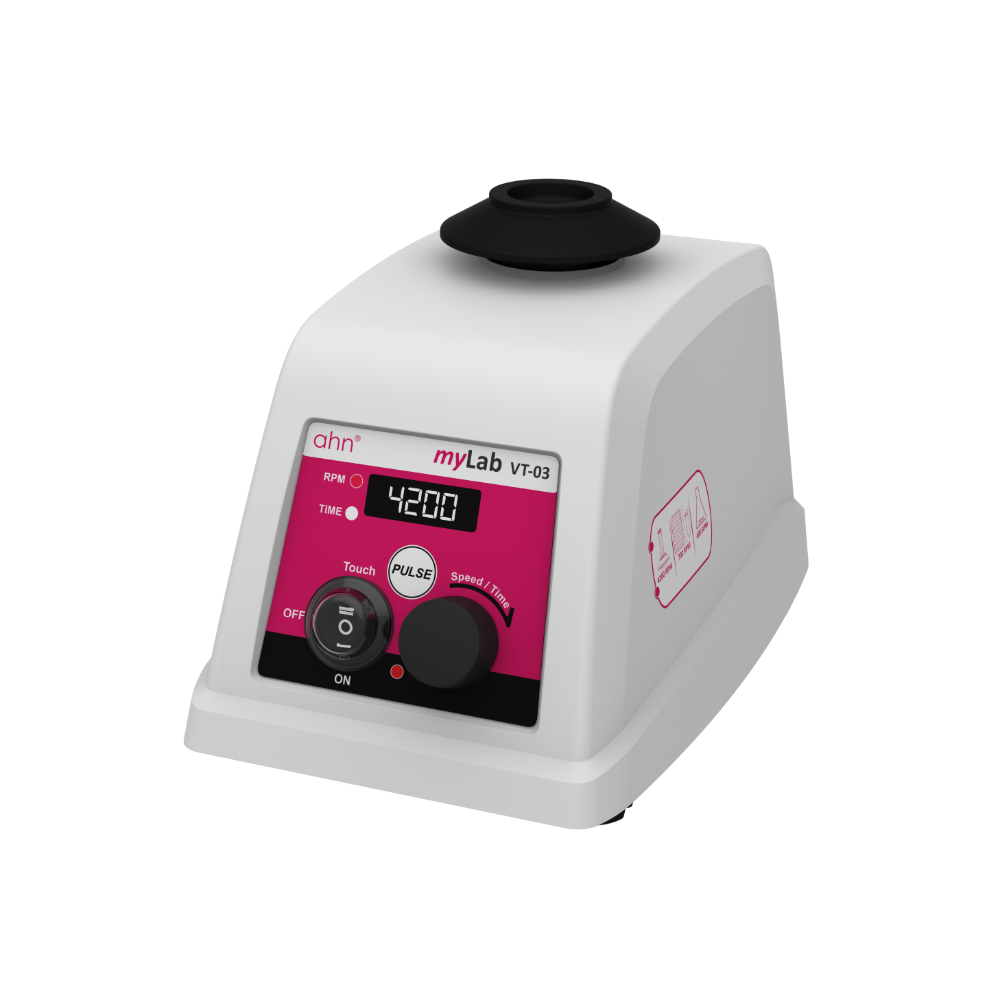

AHN myLab® Vortex Mixers VT-02 & VT-03 – Efficient, Versatile & Reliable
Performance & Speed
- VT-02: Adjustable speed up to 2800 rpm for gentle to vigorous vortexing.
- VT-03: Higher speed up to 4200 rpm for more intense mixing applications.
- Orbital diameter: 4 mm ensures efficient and consistent sample vortexing.
Multiple Operation Modes
- Continuous Mode: Runs non-stop for extended vortexing sessions.
- Touch Mode: Activated by pressing down the tube for quick, hands-free operation.
- Standby Mode: Conserves energy when not in use.
Compatible with Multiple Attachments
- Pre-installed standard cup head for vortexing individual tubes.
- Optional universal platform attachment allows additional accessories:
- Foam insert for microtubes

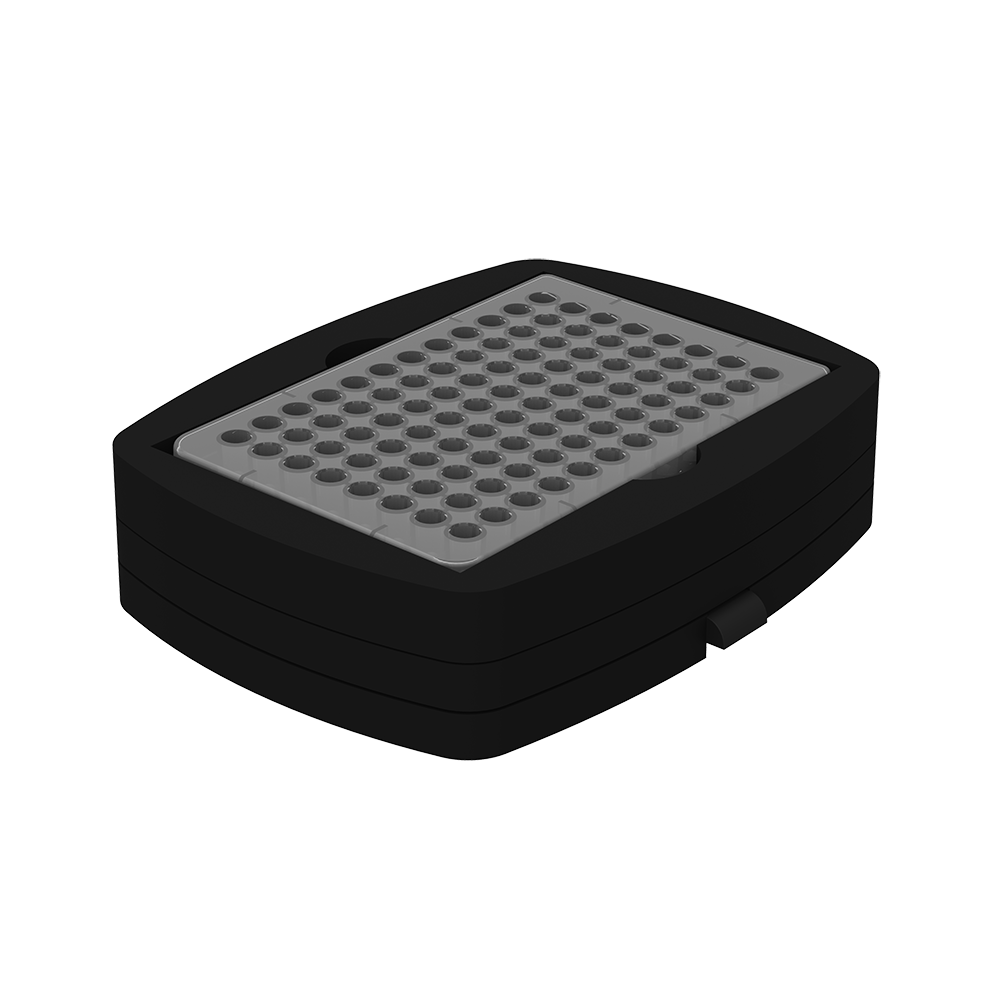

- Foam insert for microplates

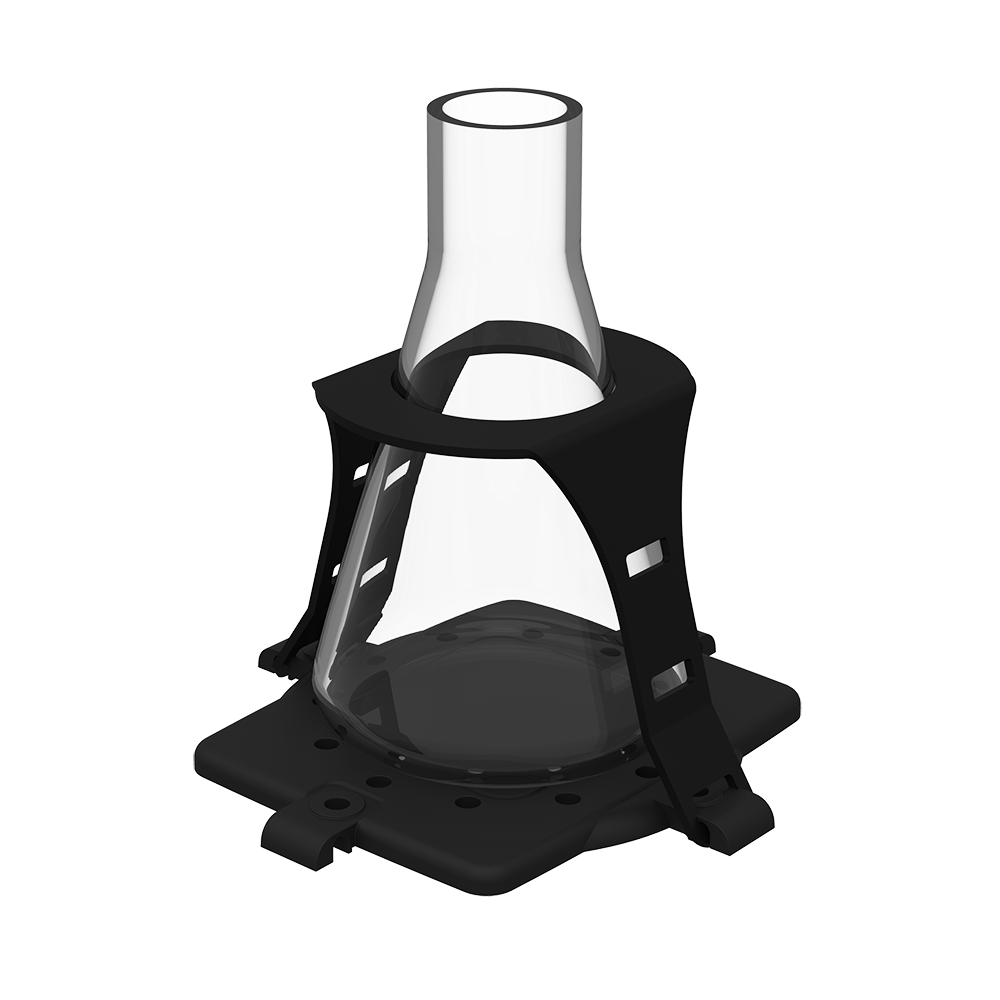

- Rubber holder for flasks
- Front panel speed guide displays permissible speed settings for each attachment.
- Stable & Maintenance-Free Operation
- Brushless DC motor for long-lasting, maintenance-free performance.
- Low noise level for a quiet lab environment.
- Anti-slip rubber feet & robust construction keep the mixer stable even at maximum speed.
Compact & Lab-Friendly Design
- Cold room & fume hood compatible – Operates efficiently at temperatures from 5°C to 40°C.
- Space-saving footprint for optimized bench space usage.
- Lightweight yet sturdy – Weighs 3 kg, ensuring stability without excessive bulk
Specification Details Orbital Diameter 4 mm Different Modes Touch, Continuous Speed Accuracy ± 5.0% Max. Loading Capacity 500 g Protection Class IP21 Power Supply 220, 240 VAC, 50 Hz Dimensions (WxDxH) 205x136x138.5 mm Weight 3.0 kg
