BT Lab Systems BT205 Vertical Electrophoresis Unit – 2 Gels, 186×95 mm

BT Lab Systems BT205 Vertical Electrophoresis Unit – 2 Gels, 186×95 mm — laboratory product supplied by LabMed Nepal for research, testing, education, industrial and institutional applications. Review the technical specifications and request current availability and quotation.

Key specificationsAt a glance
Model / SKUBT205
BrandBT Lab Systems
ModelBT205
Product TypeVertical Electrophoresis Unit
Gel Size186 × 95 mm
Glass Plate Size216 × 110 mm
B2B procurement Need an official quotation?

Send this model for price, lead time, warranty and delivery confirmation.

Request quotation → SKU / Model: BT205
Product resources Details, brochures & technical documents

Review technical information for procurement, model comparison and approval.

01 / DetailsProduct DetailsOverview, application and product information ↓ 02 / SpecificationsTechnical SpecificationsView complete specification table ↓ 03 / PDFRequest Brochure / CatalogueRequest the latest PDF catalogue or brochure → 04 / ManualUser ManualOpen product manual ↗ 05 / VideoRequest Product VideoAsk for demo or product media → 06 / SourceManufacturer PageVerified product source ↗
SKU: BT205 Categories: , , ,
Share this product
◆ Get Quote

Description

Features

  • Quick and fast assembly
  • Gel making modular device allows multiple gels to be poured at one time
  • Large buffer volume to amintain cool gels and constant pH
  • Auto switch off when lid removed.

Specifications

  • Gel size: 186 x 95mm
  • Glass plate size: 216 x 110mm
  • Gel Thickness: 1.0mm
  • Run 1-2 gels
  • No. of samples: 25, 40, 52
  • Buffer capacity: ~1,800ml
  • Dimensions: 280 x 140 x 135mm

Supplied with

  • Lid with cables (1)
  • Body tank (1)

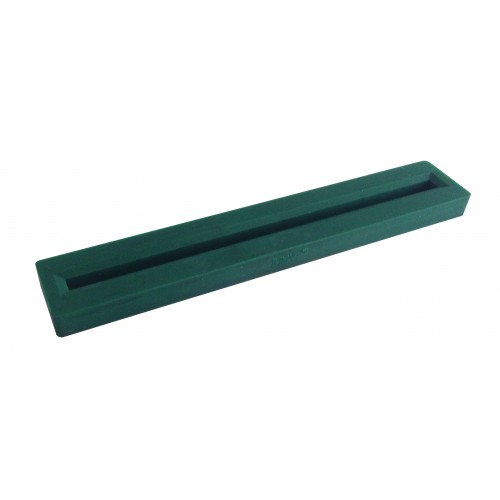

  • Gel Casting Core (1)

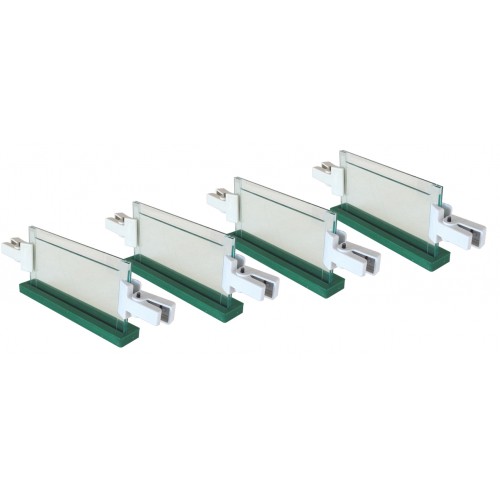

  • Gel Casting Modular (2)
  • Notched Glass Plates (4)
  • Spacer Plates with 1mm Glass Spacer (4)
  • 1mm thickness comb 25-wells (2)
  • 1mm thickness comb 40-wells (2)
  • 1mm thickness comb 52-wells (2)

Additional information

Brand

BT Lab Systems
Model

BT205
Product Type

Vertical Electrophoresis Unit
Gel Size

186 × 95 mm
Glass Plate Size

216 × 110 mm
Gel Thickness

1.0 mm
Number of Gels

1–2
Sample Capacity

25 / 40 / 52
Buffer Capacity

Approx. 1800 mL
Dimensions

280 × 140 × 135 mm
Safety

Auto power-off when lid removed
