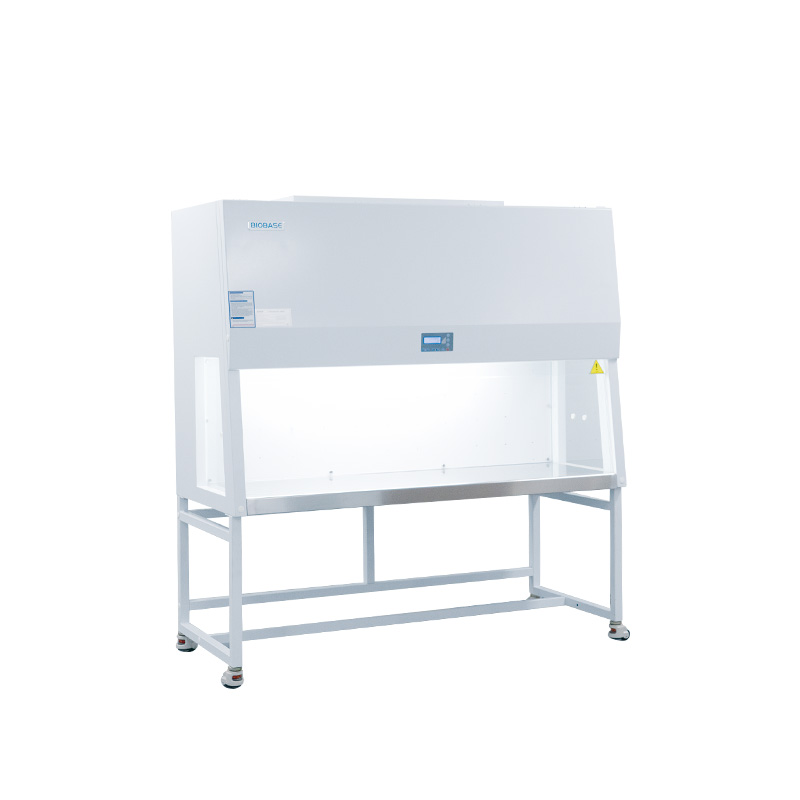

BIOBASE BBS-H1800-I Horizontal Laminar Flow Cabinet

BIOBASE BBS-H1800-I Horizontal Laminar Flow Cabinet

BIOBASE horizontal laminar-flow clean bench with HEPA filtration, SUS304 work zone, LCD monitoring and ISO 5/Class 100 clean-air performance.

Key specificationsAt a glance
Model / SKUBBS-H1800-I
BrandBIOBASE
ModelBBS-H1800-I
External Size (W×D×H)1800 × 820 × 1940 mm
Internal Size (W×D×H)1700 × 520 × 570 mm
Work Surface Height750 mm
B2B procurement Need an official quotation?

Send this model for price, lead time, warranty and delivery confirmation.

Request quotation → SKU / Model: BBS-H1800-I
Product resources Details, brochures & technical documents

Review technical information for procurement, model comparison and approval.

01 / DetailsProduct DetailsOverview, application and product information ↓ 02 / SpecificationsTechnical SpecificationsView complete specification table ↓ 03 / PDFDownload BrochureOfficial brochure or catalogue ↗ 04 / ManualUser ManualOpen product manual ↗ 05 / VideoRequest Product VideoAsk for demo or product media → 06 / SourceManufacturer PageVerified product source ↗
SKU: BBS-H1800-I Categories: , , , , , , ,
Share this product
◆ Get Quote

Description

BIOBASE BBS-H1800-I Horizontal Laminar Flow Cabinet

Horizontal clean-air workstation for sensitive laboratory procedures requiring a sterile, particle-controlled work environment and sample protection.

Verified technical specifications

  • External size: 1800 × 820 × 1940 mm
  • Internal size: 1700 × 520 × 570 mm
  • Work surface height: 750 mm
  • Maximum opening: 430 mm
  • Display: LCD
  • Airflow velocity: 0.30–0.5 m/s
  • Work zone: SUS304 stainless steel
  • HEPA filter: 99.995% efficiency at 0.3 μm
  • Motorized front window
  • Noise: ≤65 dB(A)
  • Illumination: ≥300 lx
  • Clean level: ISO 5 / Class 100
  • Waterproof sockets: 2, maximum total power 1000 W
  • Consumption: 500 W
  • LED lamp: 16 W × 2
  • UV lamp: 30 W × 1
  • Standard accessories: Base stand, LED lamp, UV lamp, waterproof sockets ×2, gas tap, water tap
  • Package size: 1950 × 1140 × 1460 mm
  • Gross weight: 325 kg

Official BIOBASE product page and brochure

Additional information

Brand

BIOBASE
Model

BBS-H1800-I
External Size (W×D×H)

1800 × 820 × 1940 mm
Internal Size (W×D×H)

1700 × 520 × 570 mm
Work Surface Height

750 mm
Max Opening

430 mm
Display

LCD
Airflow Velocity

0.30–0.5 m/s
Work Area Material

304 stainless steel
HEPA Filter

99.995% efficiency at 0.3 μm
Front Window

Motorized
Noise

≤65 dB(A)
Illumination

≥300 lx
Vibration

≤5 μm rms
Clean Level

ISO Class 5 (Class 100)
Waterproof Sockets

2 sockets, max. 1000 W
Power Supply

AC220 V ±10%, 50/60 Hz standard; 110 V ±10%, 60 Hz optional
Consumption

500 W
LED Lamp

16 W × 2
UV Lamp

30 W × 1
Package Size (W×D×H)

1950 × 1140 × 1460 mm
Gross Weight

325 kg
